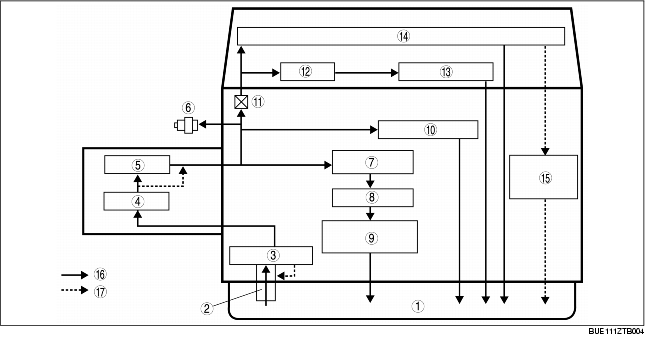

LUBRICATION SYSTEM FLOW CHART [AJ (3.0L Duratec)]
BUE011100000N04
|
1
|
Oil pan
|
|
2
|
Oil strainer
|
|
3
|
Oil pump
|
|
4
|
Oil cooler
|
|
5
|
Oil filter
|
|
6
|
Oil pressure switch
|
|
7
|
Main bearing
|
|
8
|
Crankshaft
|
|
9
|
Connecting rod bearing
|
|
10
|
Chain tensioner
|
|
11
|
Orifice
|
|
12
|
HLA
|
|
13
|
Rocker arm
|
|
14
|
Camshaft
|
|
15
|
Timing chain
|
|
16
|
Oil passage
|
|
17
|
Oil relief passage
|
