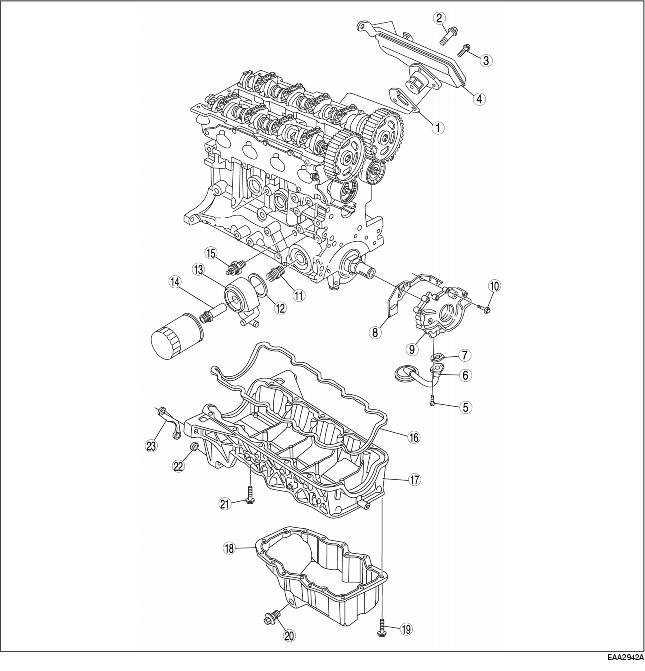

LUBRICATION SYSTEM STRUCTURAL VIEW [YF (2.0L Zetec)]
BUE011100000N05
1
Oil separator gasket
2
Bolt
3
Bolt
4
Oil separator
5
Bolt
6
Oil pump screen cover and tube
7
Oil pump inlet gasket
8
Oil pump gasket
9
Oil pump
10
Bolt
11
Oil filter fitting
12
Oil cooler gasket
13
Oil cooler
14
Oil cooler mounting bolt
15
Oil pressure sender
16
Lower cylinder block gasket
17
Lower cylinder block
18
Oil pan
19
Bolt
20
Oil pan drain plug
21
Bolt
22
Shim
23
Shim
