OIL JET VALVE CONSTRUCTION/OPERATION [L3]
BUE011110730N01
Construction
• The oil jet valves are installed in the cylinder block (in the main journal). The oil jet valve nozzles are installed pointed to the back of each piston.
• The oil jet valves have been designed to maintain optimum oil pressure in the engine by controlling the oil injection according to the oil pressure applied to the check ball in the oil jet valves.
|
1
|
Cylinder liner
|
|
2
|
Engine front side
|
|
3
|
Oil jet valve
|
|
4
|
Cylinder block
|
|
5
|
Piston
|
|
6
|
Oil
|
|
7
|
Main journal
|
Operation

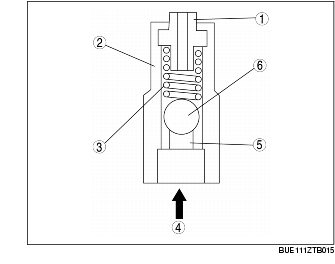

• Oil pressure applied to the check-ball in the oil jet valve opens and closes the oil passage to the nozzle and controls the oil injection starting and stopping.
• Oil pressure greater than the specified value applied to the check-ball in the oil jet valve opens the oil passage to the spring-pressed nozzle, starting injection. Conversely, oil pressure less than the specified value applied to the check-ball blocks the oil passage by spring force, stopping injection.
|
1
|
Nozzle
|
|
2
|
Oil jet valve body
|
|
3
|
Spring
|
|
4
|
Oil
|
|
5
|
Oil passage
|
|
6
|
Check ball
|
