OIL PUMP CONSTRUCTION [AJ (3.0L Duratec)]
BUE011114100N02

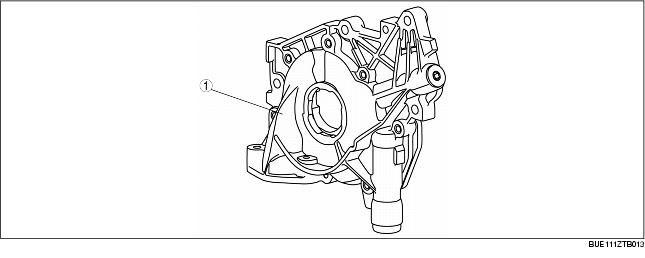

Construction
• The oil pump is directly driven by the crankshaft to reduce engine noise.
• A trochoid gear type oil pump has been adopted to ensure stable discharge function.
• If there is any oil pump malfunction, replace it as a unit.
• The oil pump regulator, which adjusts the oil pressure, is built into the oil pump body.
