OIL FILTER CONSTRUCTION [L3]
BUE011114300N01
Construction
• The oil filter is full-flow paper element type with an outer diameter of 76.2 mm {3.00 in} and height of 94.0 mm {3.70 in}.
• An aluminum oil filter adapter has been adopted for weight reduction. The oil pressure switch is installed on the oil filter adapter.
• A water-cooled oil cooler has been adopted to reduce the engine oil degradation. Also, an exclusive use oil filter adapter has been adopted for the oil cooler.
|

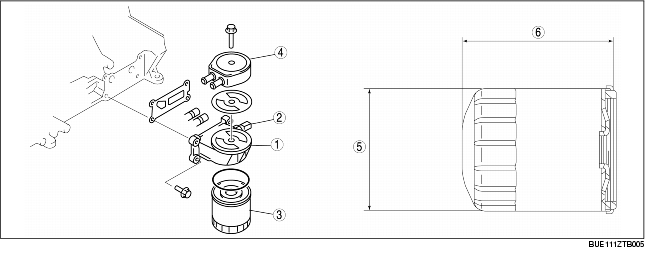

1
|
Oil filter adapter
|
|
2
|
Oil pressure switch
|
|
3
|
Oil filter
|
|
4
|
Oil cooler
|
|
5
|
Outer diameter
|
|
6
|
Height
|
