WATER PUMP CONSTRUCTION/OPERATION [AJ (3.0L Duratec)]
BUE011215010N02
Construction
• The water pump body is made of aluminum alloy and the impeller is built into the cylinder block for weight reduction.
• The drive belt tension is automatically adjusted by the tensioner.
Operation
• The water pump is driven by a V-ribbed belt off the pulley on the rear end of the intake camshaft in the cylinder head.
|
1
|
Water pump pulley
|
|
2
|

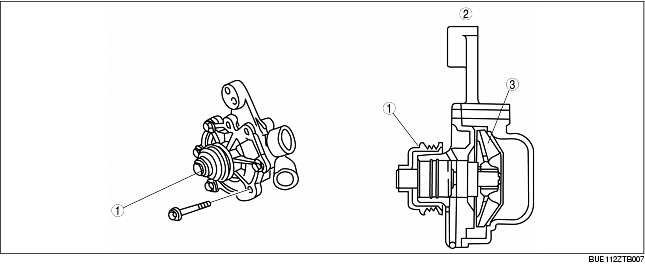

Sectional view
|
|
3
|
Impller
|
