COOLING FAN COMPONENT CONSTRUCTION
BUE011215140N01

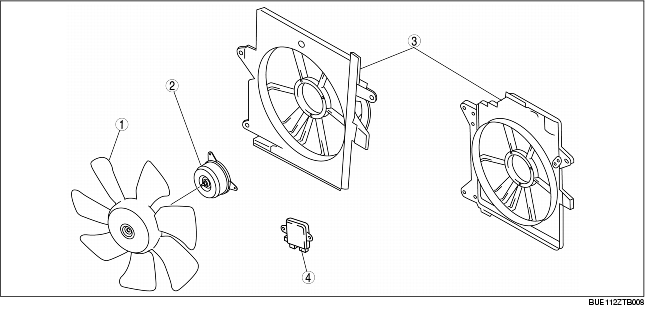

• The electric fan consists of the radiator cowling, cooling fan, cooling fan motor, and fan control module [L3].
• Plastic has been adopted on the radiator cowling and cooling fan for weight reduction.
|
1
|
Cooling fan
|
|
2
|
Cooling fan motor
|
|
3
|
Radiator cowling
|
|
4
|
Fan control module (L3)
|
