RADIATOR CONSTRUCTION
BUE011215200N01
• Corrugated fins have been adopted on the radiator.
|

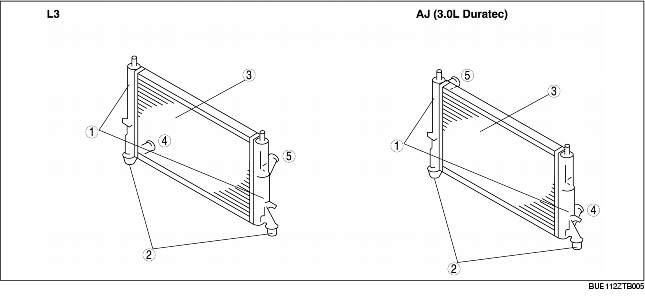

1
|
Tank
|
|
2
|
Rubber mounting bracket
|
|
3
|
Core
|
|
4
|
Lower radiator hose
|
|
5
|
Upper radiator hose
|
• The radiator tanks are made of plastic and the core is made of aluminum for weight reduction.
• A cross-flow radiator has been adopted to improve cooling performance.
• The radiator is protected from vibration through the support of mounting rubber in two locations on the bottom of the radiator.
• The radiator has an ATF cooler on the left side. (ATX)
