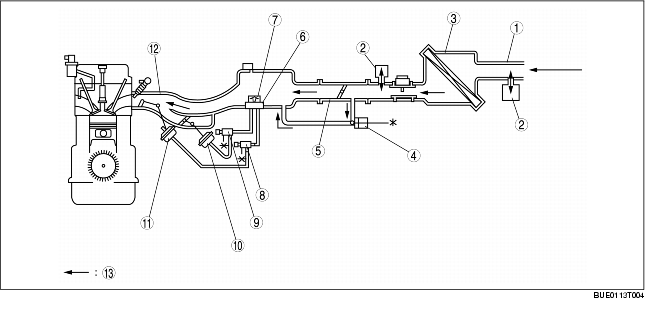

INTAKE-AIR SYSTEM DIAGRAM [L3]
BUE011300000N03
1
Fresh-air duct
2
Resonance chamber
3
Air cleaner
4
IAC valve
5
Throttle body
6
Vacuum chamber
7
Check valve
8
Variable tumble solenoid valve (R.H.D.)
9
Variable intake-air solenoid valve
10
Variable intake-air shutter valve actuator
11
Variable tumble shutter valve actuator (R.H.D.)
12
Intake manifold
13
Airflow
