VARIABLE INTAKE-AIR SYSTEM STRUCTURE [L3]

BUE011300020N02

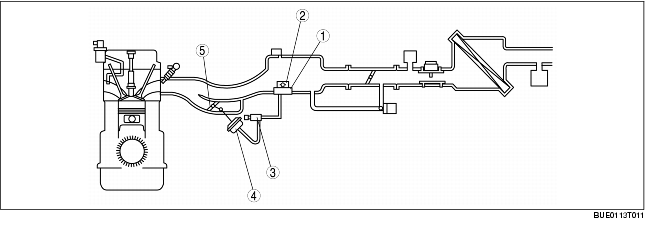

• Consists of the variable intake air solenoid valve, variable intake air shutter valve, variable intake air shutter valve actuator, dynamic chamber, vacuum chamber, and check valve.


1	Vacuum chamber
2	Check valve
3	Variable intake-air solenoid valve
4	Variable intake-air shutter valve actuator
5	Variable intake-air shutter valve
