RESONANCE CHAMBER OUTLINE [L3]
BUE011313191N01
• Installed on the fresh air duct to reduce intake air noise.
• Installed on the air hose to reduce IAC solenoid valve resonance.

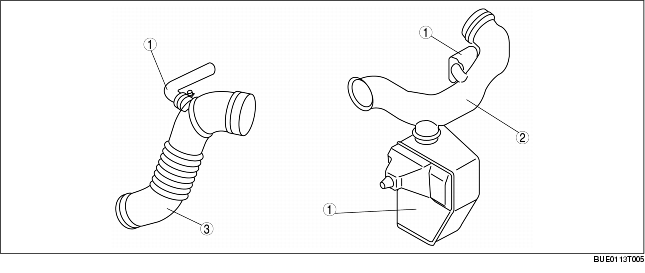

R.H.D. model
|
1
|
Resonance chamber
|
|
2
|
Fresh-air duct
|
|
3
|
Air hose
|

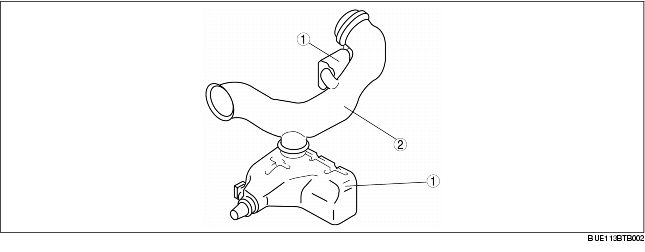

L.H.D. model
|
1
|
Resonance chamber
|
|
2
|
Fresh-air duct
|
