VARIABLE TUMBLE SOLENOID VALVE CONSTRUCTION/OPERATION [L3 R.H.D.]

BUE011318745N02

Construction

• Mainly composed of the solenoid coil, spring, plunger, and filter.

Operation

Energized
• The solenoid coil magnetizes, pulling the plunger. The passage between ports A and B opens due to the plunger being pulled, and the intake manifold vacuum is applied to the actuator.
Not energized
• The intake manifold vacuum passage is blocked, and the passage between ports B and C opens, depressurizing the actuator.

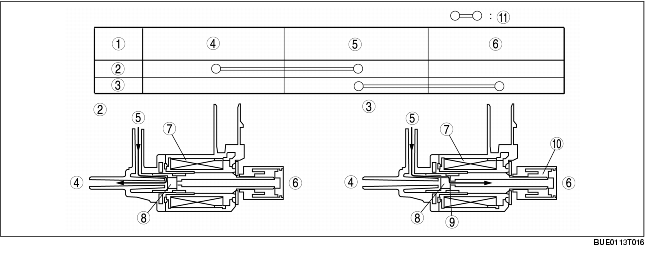

1
Connected to
2
Energized
3
Not energized
4
Port A (to intake manifold)
5
Port B (to actuator)
6
Port C (to atmospheric air)
7
Solenoid coil
8
Plunger
9
Spring
10
Filter
11
Airflow
