FUEL PUMP STOP SWITCH CONSTRUCTION/OPERATION [YF (2.0L Zetec)]

BUE011400000N19

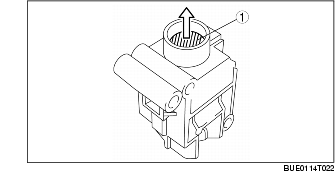

• The release switch moves upward when subject to a large impact. Due to this, current to the fuel pump is cut off and fuel pump operation is stopped.


1	Release switch

• Current to the fuel pump can be resumed by pressing the release switch down again.
