FUEL INJECTOR CONSTRUCTION/OPERATION [YF (2.0L Zetec)]
BUE011413250N06
• Installed on the cylinder head.
• The fuel injector is a solenoid-operated valve that meters fuel flow to the engine. The fuel injector is opened and closed a constant number of times per crankshaft revolution. The amount of fuel is controlled by the length of time the fuel injector is held open.
• The fuel injector is normally closed and is operated by 12 V from the electronic engine control power relay. The ground signal is controlled by the PCM.
|

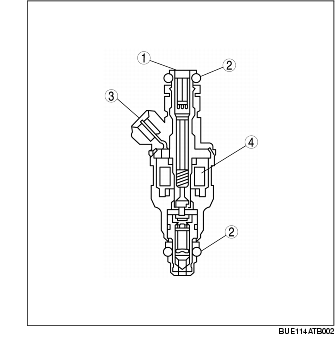

1
|
Fuel filter screen
|
|
2
|
O-ring
|
|
3
|
Connector
|
|
4
|
Coil
|
