QUICK RELEASE CONNECTOR CONSTRUCTION/OPERATION [L3]

BUE011442692N02

• There are two types of quick release connectors.

Type A

• Used around the fuel tank (except for the fuel filter) and in the engine compartment. (R.H.D. model)
• An SST is not used with this type.
• Mainly consists of a retainer and O-ring. The quick release connector is integrated with the fuel hose and therefore cannot be disassembled.

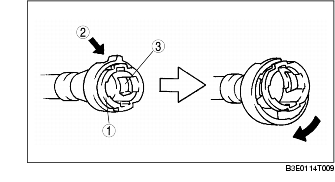

• When the quick release connector is connected, the fuel pipe projection is locked at the clamp lock point. By pushing the clamp release tab to expand the clamp, the lock point is released allowing the fuel pipe to be disconnected.

1
Quick release connector
2
Release tab
3
Lock point

• To connect the quick release connector properly, push it into the fuel pipe until a locking click sound is heard.

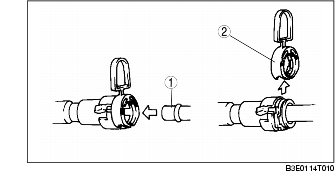

• New quick release connectors are fitted with a checker tab that prevents improper fit. This checker tab cannot normally be removed. When the quick release connector is properly connected to the fuel pipe, the lock is released and the checker tab comes off. Due to this, it can be verified that the quick release connector is completely connected.

1
Fuel pipe
2
Checker tab

Type B

• Used for the fuel filter. (R.H.D. model)
• An SST is used with this type.
• Mainly consists of a retainer and O-ring. The quick release connector is integrated with the fuel hose and therefore cannot be disassembled.

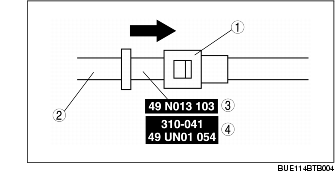

• When the SST is used, the fuel pipe can be disconnected by inserting the SST into the quick release connector and pulling it off at a level angle.

1
Quick release connector
2
Joint port
3
For 8 mm {0.31 in} diameter pipe
4
For 9.5 mm {0.37 in} diameter pipe

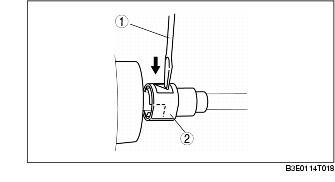

• When the SST is not used, the pipe can be disconnected by pulling it out level while pressing each retainer lock one by one using a flathead screwdriver or a similar tool.

1
Flathead screwdriver
2
Quick release connector

• To connect the quick release connector properly, push it into the fuel pipe until a locking click sound is heard.

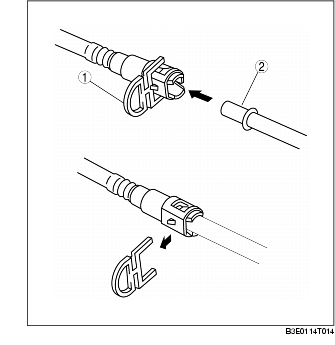

• New quick release connectors are fitted with a checker tab that prevents improper fit. This checker tab cannot normally be removed. When the quick release connector is properly connected to the fuel pipe, the lock is released and the checker tab comes off. Due to this, it can be verified that the quick release connector is completely connected.

1
Checker tab
2
Fuel pipe

Type C, D, E, and F

• Used around the fuel tank and in the engine compartment. (L.H.D. model)
• An SST is not used with this type.
• Mainly consists of a retainer and O-ring. The quick release connector is integrated with the fuel hose and therefore cannot be disassembled.

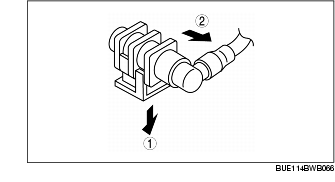

• When the quick release connector is connected, the fuel pipe projection is locked at the clamp lock point. To release the quick connector lock for each type, follow the procedure in the order shown in each figure.

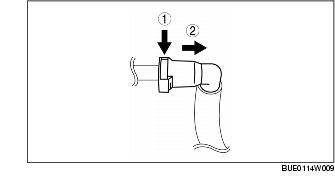

Type C

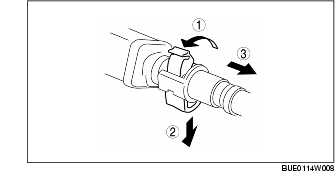

Type D

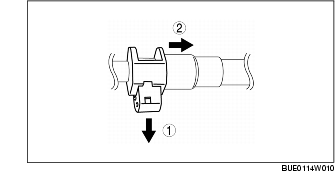

Type E

Type F
