CATALYTIC CONVERTER SYSTEM STRUCTURE [L3 R.H.D.]
BUE011600050N02
• Consists of a three way catalytic converter and insulator.
• A catalytic converter utilizing a platinum-palladium-rhodium system has been adopted.

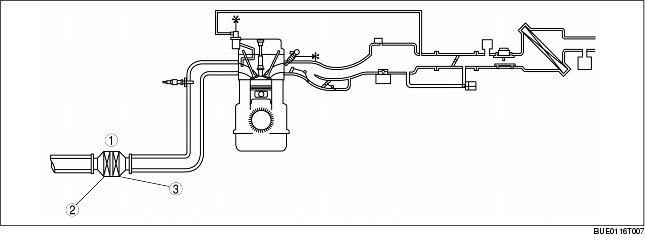

System Diagram
|
1
|
TWC
|
|
2
|
Platinum-rhodium (1.33 L)
|
|
3
|
Platinum-palladium-rhodium (1.33 L)
|
