POSITIVE CRANKCASE VENTILATION (PCV) VALVE CONSTRUCTION/OPERATION [L3]
BUE011613890N02
• Mainly consists of a spring and valves.
• Ensures the passage of blowby gas by opening the valve according to the intake manifold vacuum, and adjusts the amount of gas by spring force.
|

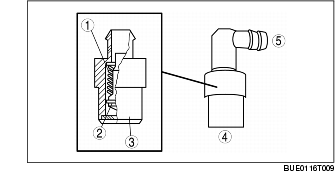

1
|
Spring
|
|
2
|
Internal valve
|
|
3
|
PCV valve
|
|
4
|
From oil separator
|
|
5
|
To intake manifold
|
