CHARCOAL CANISTER CONSTRUCTION/OPERATION [L3 R.H.D.]
BUE011613970N02
• Installed on the rear of the fuel tank.
• During purge solenoid valve operation, atmospheric air enters the charcoal canister from the atmospheric orifice to entirely flood the activated charcoal and release the evaporative gas.
|

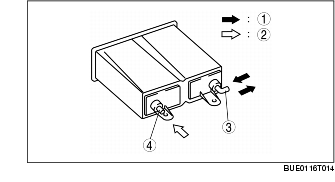

1
|
Flow of evaporative gas
|
|
2
|
Flow of atmosphere
|
|
3
|
Fuel tank, purge solenoid valve side
|
|
4
|
Atmosphere
|
