CHARCOAL CANISTER CONSTRUCTION/OPERATION [AJ (3.0L Duratec)]
BUE011613970N04
• Installed on the front of the fuel tank.
• During purge solenoid valve operation, atmospheric air enters the charcoal canister from the atmospheric orifice to entirely flood the activated charcoal and release the evaporative gas.
|

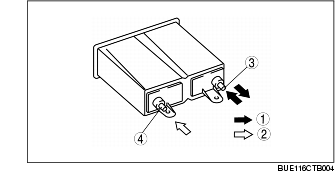

1
|
EVAP gas flow
|
|
2
|
Atmospheric air flow
|
|
3
|
To purge solenoid valve and fuel tank
|
|
4
|
To atmospheric
|
