EGR CONTROL VALVE CONSTRUCTION/OPERATION [YF (2.0L Zetec)]

BUE011618741N04

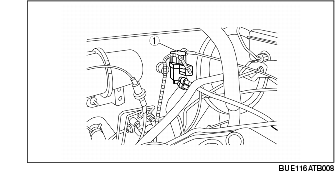

• Installed near the installation area of the intake manifold throttle body.


1	EGR control valve

• Consists of a plunger, coils, and a spring.

• The EGR control valve moves the EGR control valve plunger according to the EGR control (duty) signal from the PCM to change the vacuum applied to the EGR valve.
