EGR VALVE CONSTRUCTION/OPERATION [AJ (3.0L Duratec)]

BUE011620300N04

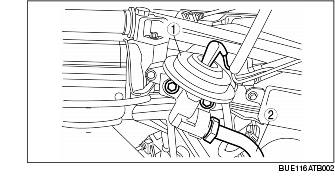

• Installed near the throttle body installation area of the intake manifold.


1	EGR valve
2	EGR pipe

• Consists of a diaphragm, spring, and valve.

• The valve operates based on the driving of the diaphragm according to the control vacuum from the EGR control valve.
