GENERATOR DESCRIPTION/OPERATION [YF (2.0L Zetec)]
BUE011700000N04
• The charging system consists of the following components:
-
- generator
-
- integral voltage regulator
• The generator maximum output provides 110 amps.
|

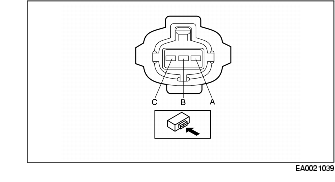

A
|
GEN MON Circuit
|
|
B
|
GEN COM Circuit
|
|
C
|
A Circuit
|
A Circuit
• The A circuit or battery sense circuit is used to sense battery voltage. This voltage is used by the regulator to determine generator output. This circuit is used to supply current to the generator field (rotor). The amount of current supplied to the rotor will determine generator output.
