ENGINE CONTROL SYSTEM STRUCTURAL VIEW [L3]
BUE014000000N02

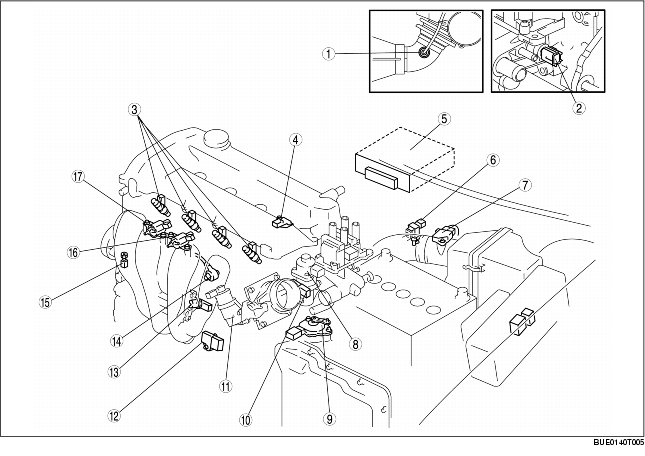

R.H.D. Model
1
HO2S
2
ECT sensor
3
Fuel injector
4
CMP sensor
5
PCM
6
Purge valve
7
MAF/IAT sensor
8
EGR valve
9
TR switch
10
TP sensor
11
IAC valve
12
MAP sensor
13
CKP sensor
14
KS
15
PSP switch
16
Variable tumble solenoid valve
17
Variable intake-air solenoid valve

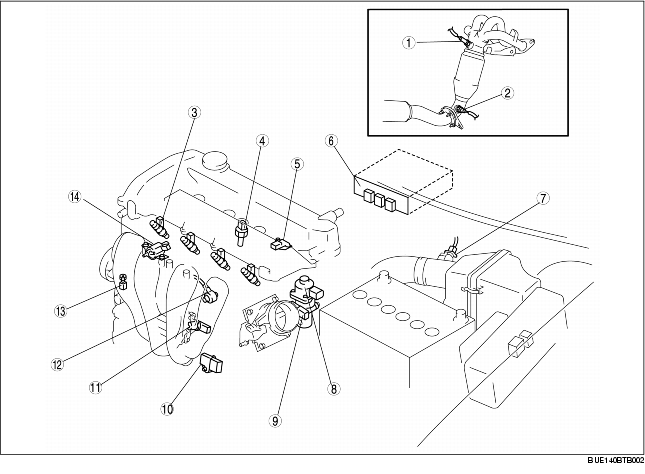

L.H.D. Model
1
Front HO2S
2
Rear HO2S
3
Fuel injector
4
Cylinder head temperature sensor
5
CMP sensor
6
PCM
7
MAF/IAT sensor
8
EGR valve
9
TP sensor
10
MAP sensor
11
CKP sensor
12
KS
13
PSP switch
14
Variable intake-air solenoid valve
