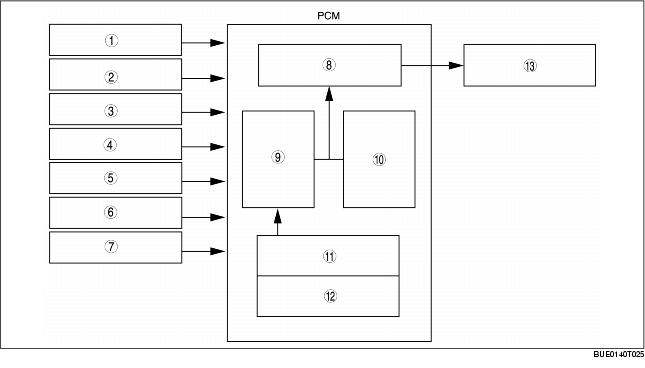

EGR CONTROL BLOCK DIAGRAM [L3 R.H.D.]
BUE014000000N29
1
MAF sensor
2
IAT sensor
3
TP sensor
4
MAP sensor
5
ECT sensor
6
CKP sensor
7
Vehicle speed signal (CAN)
8
EGR valve operation step number
9
Target EGR valve position
10
Current EGR valve position
11
Basic EGR valve position
12
Corrections
13
EGR valve
