STARTER CUT-OFF CONTROL OPERATION [L3 R.H.D. WITH IMMOBILIZER SYSTEM]
BUE014000000N42
When key ID number is received
• The PCM establishes a ground to the starter circuit. Therefore, when the ignition switch is turned to the START position, the starter relay is energized and the starter motor rotates. As a result, the engine starts normally.
When key ID number is not received
• The PCM does not establish a ground to the starter circuit. Therefore, the starter motor does not rotate because there is no energization of the starter relay even if the ignition switch is turned to the START position, and the engine does not start.
|

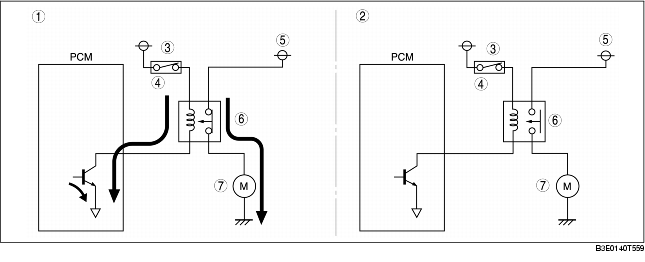

1
|
When key ID number is received
|
|
2
|
When key ID number is not received
|
|
3
|
Ignition switch
|
|
4
|
Start signal
|
|
5
|
From battery
|
|
6
|
Starter relay
|
|
7
|
Starter
|
