CYLINDER HEAD TEMPERATURE SENSOR CONSTRUCTION/OPERATION [YF (2.0L Zetec)]
BUE014018841N06
• Installed on the cylinder head.
|
1
|
Cylinder head temperature sensor
|
• The cylinder head temperature sensor is a thermistor type in which the resistance changes according to the cylinder head temperature.

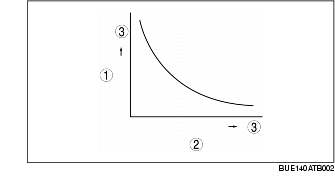

• As shown in the graph, the resistance decreases if the cylinder head temperature increases, and conversely increases if the cylinder head temperature decreases.
|
1
|
Resistance
|
|
2
|
Temperature
|
|
3
|
High
|
