INTAKE AIR TEMPERATURE (IAT) SENSOR CONSTRUCTION/OPERATION [YF (2.0L Zetec)]
BUE014018842N06

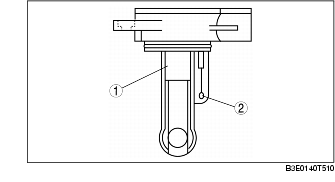

• Built into the MAF sensor.
|
1
|
MAF sensor
|
|
2
|
IAT sensor
|
• The IAT sensor is a thermistor type in which the resistance changes according to the intake air temperature.

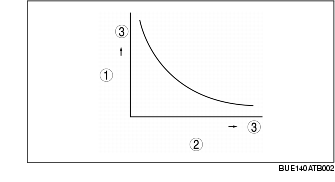

• As shown in the graph, the resistance decreases if the intake air temperature increases and conversely increases if the intake air temperature decreases.
|
1
|
Resistance
|
|
2
|
Temperature
|
|
3
|
High
|
