WHEEL ALIGNMENT OUTLINE
BUE021100000N01

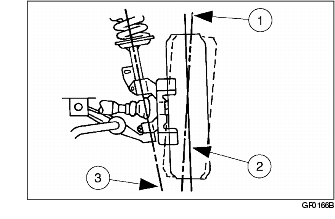

Camber
• Camber is the inward or outward tilting of the wheels at the top as viewed from the front of the vehicle.
|
Number
|
Item
|
|
1
|
Positive camber
|
|
2
|
True vertical
|
|
3
|
Steering axis
|
- When the wheels tilt out at the top, the camber is positive (+).
- When the wheels tilt in at the top, the camber is negative (-).

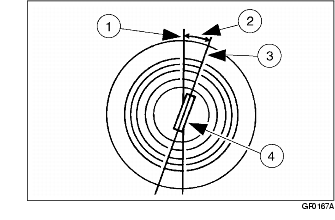

Caster
• Caster is the tilting of the steering axis either forward or backward from vertical.
|
Number
|
Item
|
|
1
|
True vertical
|
|
2
|
Positive caster
|
|
3
|
Strut ball joint centerline
|
|
4
|
Steering axis
|
- A backward tilt is positive (+) caster and a forward tilt is negative (-) caster.
- Front caster adjustment is not a separate procedure on this vehicle. The front caster should fall within the specification when the front camber is adjusted.

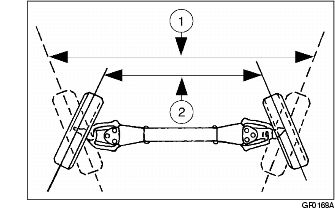

Toe
• Toe is a measurement of how much the front of the wheels are turned in or out from the straight-ahead position.
|
Number
|
Item
|
|
1
|
Negative (-) toe (toe out)
|
|
2
|
Positive (+) toe (toe in)
|
- When the wheels are turned in toward the front of the vehicle, toe is positive (+) (toe in). When the wheels are turned out from the front of the vehicle, toe is negative (-) (toe out).
- Toe is measured in degrees, from side to side, and totaled.
