ON-BOARD DIAGNOSTIC EXTERNAL TESTER COMMUNICATION FUNCTION [L3]
BUE040200000N05
• The external tester communication function enables communication of diagnostic data (DTC read-outs, input/output signal read-outs, and operation of input/output parts) between the ABS HU/CM and an external tester.
Connections/Communication Contents
|
|
External Tester
|
|
WDS or equivalent
|
|
Connection
|
Communication method
|
|
On-board diagnostic (Malfunction detection function)
|
Input/output: CAN_H, CAN_L terminals
|
Serial communication
|
|
PID/data monitor function
|
Input/output: CAN_H, CAN_L terminals
|
Serial communication
|
|
Active command modes function
|
Input/output: CAN_H, CAN_L terminals
|
Serial communication
|
Serial communication
• Serial communication (two-way communication) allows for multiple data to be sent and received instantly along the same line.

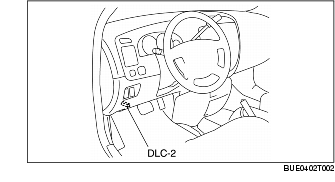

• By connecting the WDS or equivalent to the DLC-2, diagnostic data can be sent and received between the WDS or equivalent and the ABS HU/CM using the CAN_H and CAN_L terminals (within the DLC-2).
• The ABS HU/CM receives the command signals of the malfunction detection function, PID/data monitor function, and the active command modes function from the WDS or equivalent, and sends DTCs and data regarding the operating condition and status of each input/output part to the WDS or equivalent.
|
Malfunction detection function
|
Signal received
|
Signal sent
|
|
Malfunction detection function
|
DTC verification signal
|
DTC
|
|
PID/data monitor function
|
Command signal to read selected monitor item
|
Monitored data for requested monitor item
|
|
Active command modes function
|
Operation command signal for selected active command modes item
|
Output part drive signal
|
