ELECTRONIC BRAKEFORCE DISTRIBUTION (EBD) CONTROL OUTLINE [L3]
BUE041343750N09
Features
• EBD control uses the ABS system to control brake fluid pressure distribution to the rear wheels so that they do not lock-up prior to the front wheels during brake control, thereby preventing the loss of handling stability.
• EBD control has independent control systems for both the front and rear wheels.
• EBD control constantly and properly distributes brake fluid pressure regardless of vehicle weight.
Structure

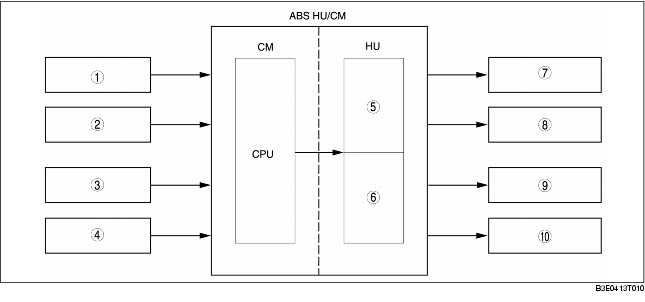

Block Diagram
|
1
|
ABS wheel-speed sensor (LF)
|
|
2
|
ABS wheel-speed sensor (RF)
|
|
3
|
ABS wheel-speed sensor (LR)
|
|
4
|
ABS wheel-speed sensor (RR)
|
|
5
|
Solenoid valve
|
|
6
|
Pump motor
|
|
7
|
Caliper piston (LF)
|
|
8
|
Caliper piston (RF)
|
|
9
|
Wheel cylinder (LR)
|
|
10
|
Wheel cylinder (RR)
|
