DLC-2 OUTLINE [GF4AX-EL]
BUE050200000N09
• A connector (DLC-2) conforming to International Organization for Standardization (ISO) standards has been adopted.

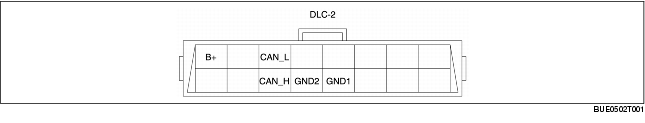

• Shape and terminal arrangement as stipulated by the ISO 15031-3 (SAE J1962) international standard has been adopted for this connector. The connector has a 16-pin construction that includes the CAN_H, CAN_L, GND1, GND2 and B+ terminals.
|
Terminal
|
Function
|
|
B+
|
Battery power supply terminal
|
|
CAN_L
|
Serial communication terminal (Lo)
|
|
CAN_H
|
Serial communication terminal (Hi)
|
|
GND1
|
Body ground terminal
|
|
GND2
|
Serial communication ground terminal
|
