DLC-2 OUTLINE [LA4AX-EL (CD4E)]
BUE050200000N18
• A connector (DLC-2) conforming to International Organization for Standardization (ISO) standards has been adopted.

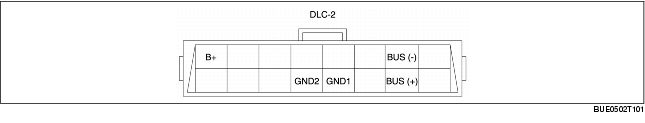

• Shape and terminal arrangement as stipulated by the ISO 15031-3 (SAE J1962) international standard has been adopted for this connector. The connector has a 16-pin construction that includes the BUS (-), BUS (+), GND1, GND2 and B+ terminals.
|
Terminal
|
Function
|
|
B+
|
Battery power supply terminal
|
|
BUS (-)
|
Serial communication terminal (-)
|
|
BUS (+)
|
Serial communication terminal (+)
|
|
GND1
|
Body ground terminal
|
|
GND2
|
Serial communication ground terminal
|
