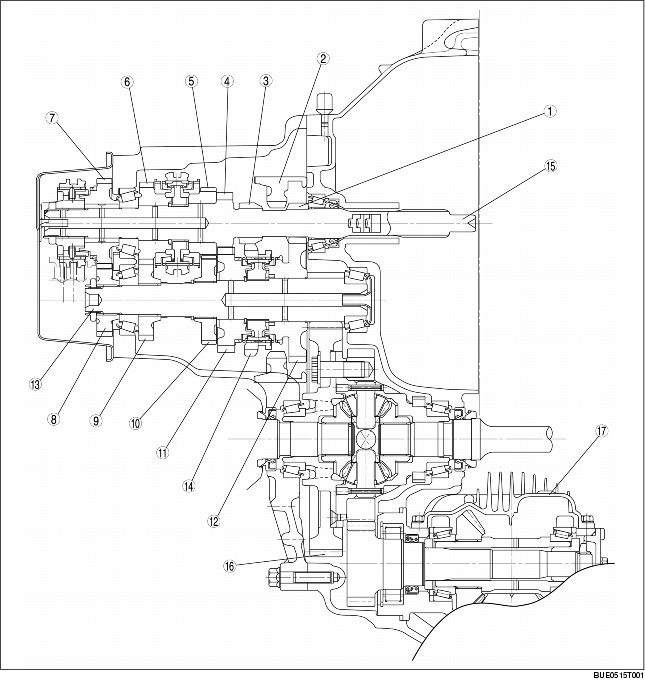

MANUAL TRANSAXLE CROSS-SECTIONAL VIEW [G15M-R, G25MX-R]
BUE051500000N13
1
1st gear
2
Reverse idler gear
3
Reverse gear
4
2nd gear
5
3rd gear
6
4th gear
7
5th gear
8
Secondary 5th gear
9
Secondary 4th gear
10
Secondary 3rd gear
11
Secondary 2nd gear
12
Secondary 1st gear
13
Secondary shaft
14
Clutch hub sleeve (reverse gear)
15
Primary shaft
16
Front differential
17
Transfer
