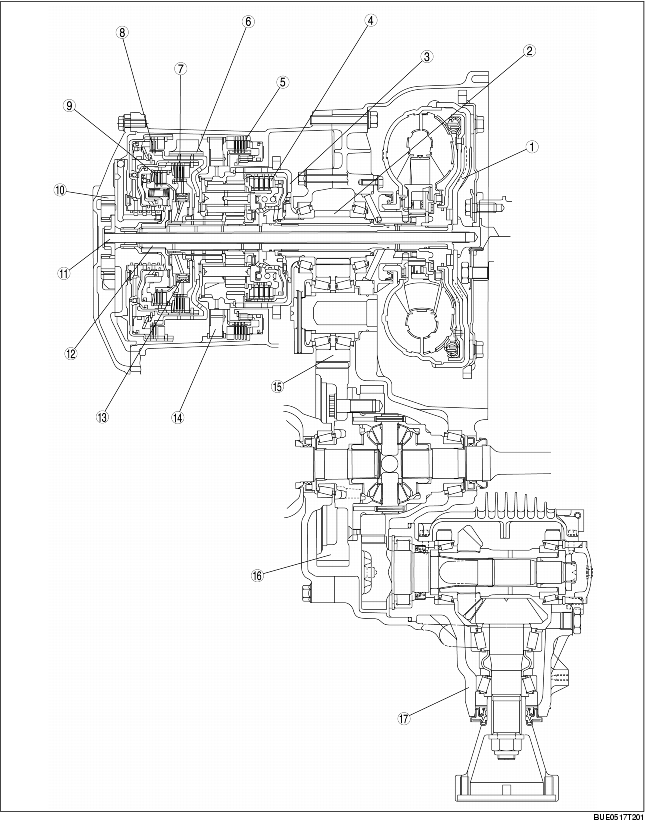

AUTOMATIC TRANSAXLE CROSS-SECTIONAL VIEW [GF4AX-EL]
BUE051700000N02
|
1
|
Torque converter
|
|
2
|
Output gear
|
|
3
|
Output shell
|
|
4
|
3-4 clutch
|
|
5
|
Low and reverse brake
|
|
6
|
2-4 brake band
|
|
7
|
Forward clutch
|
|
8
|
Reverse clutch
|
|
9
|
Coasting clutch
|
|
10
|
Oil pump
|
|
11
|
Oil pump shaft
|
|
12
|
Turbine shaft
|
|
13
|
One-way clutch 1
|
|
14
|
One-way clutch 2
|
|
15
|
Idle gear
|
|
16
|
Front differential
|
|
17
|
Transfer
|
