POWERTRAIN STRUCTURE [GF4AX-EL]
BUE051700000N06

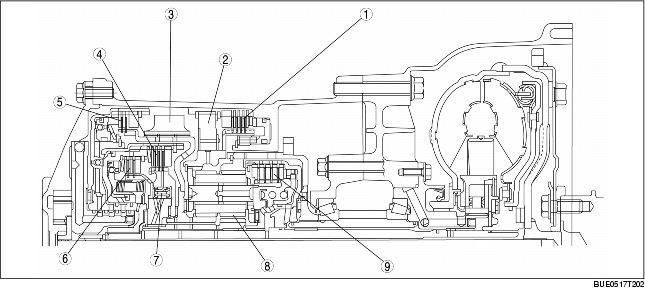

• The powertrain consists of four sets of multi-plate clutches, one set of multi-plate brakes, one set of band brakes, two sets of one-way clutches, and one Ravigneaux planetary gear set.
|
1
|
Low and reverse brake (B2)
|
|
2
|
One-way clutch 2 (OWC2)
|
|
3
|
2-4 brake band (B1)
|
|
4
|
Forward clutch (C1)
|
|
5
|
Reverse clutch (C4)
|
|
6
|
Coasting clutch (C2)
|
|
7
|
One-way clutch 1 (OWC1)
|
|
8
|
Planetary gear
|
|
9
|
3-4 clutch (C3)
|
