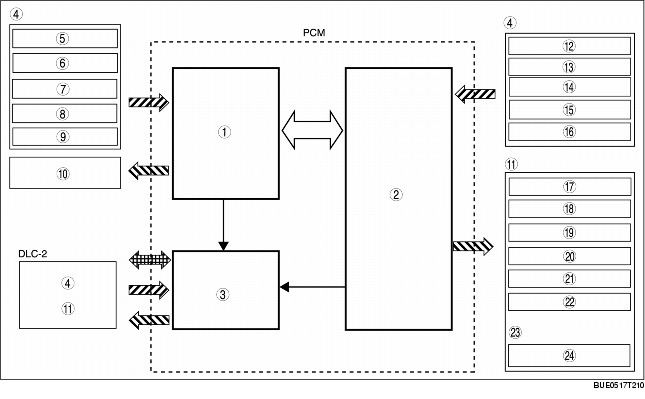

ELECTRONIC CONTROL SYSTEM BLOCK DIAGRAM [GF4AX-EL]
BUE051718880N03
1
Engine control system
2
Transaxle control system
3
On-board diagnostic system
4
Input signals
5
MAF sensor
6
TP sensor
7
CKP sensor
8
Brake switch
9
ECT sensor
10
Engine control output signals
11
Output signals
12
TR switch
13
TFT sensor
14
Input/turbine speed sensor
15
ABS wheel-speed sensor
16
O/D OFF switch
17
Pressure control solenoid
18
Shift solenoid A
19
Shift solenoid B
20
Shift solenoid C
21
3-2 timing solenoid
22
TCC control solenoid
23
Instrument cluster
24
O/D OFF indicator light
