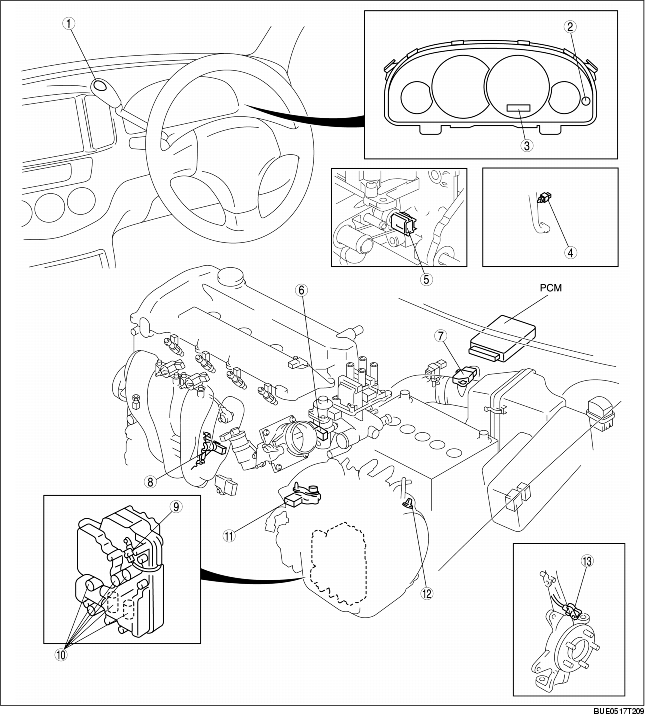

ELECTRONIC CONTROL SYSTEM STRUCTURAL VIEW [GF4AX-EL]
BUE051718880N20
1
O/D OFF switch
2
O/D OFF indicator light
3
Selector indicator light
4
Brake switch
5
ECT sensor
6
TP sensor
7
MAF sensor
8
CKP sensor
9
TFT sensor
10
Solenoid valves
11
TR switch
12
Input/turbine speed sensor
13
ABS wheel-speed sensor
