LINE PRESSURE CONTROL STRUCTURE [GF4AX-EL]
BUE051718880N21
Features
• The TP sensor detects the throttle opening angle, sends an electrical signal to the PCM and the PCM controls the pressure control solenoid to adjust the pressure modifier pressure. This pressure modifier pressure is used as signal pressure for controlling the pressure regulator valve thereby optimally adjusting oil pump discharge pressure according to driving conditions.
Structure

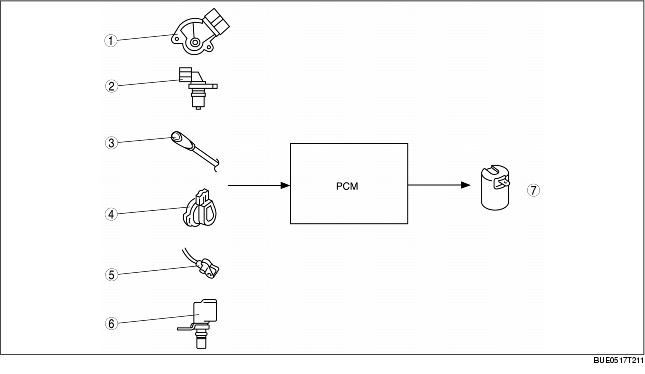

Block Diagram
|
1
|
TR switch
|
|
2
|
Input/turbine speed sensor
|
|
3
|
O/D OFF switch
|
|
4
|
TP sensor
|
|
5
|
ABS wheel-speed sensor
|
|
6
|
TFT sensor
|
|
7
|
Pressure control solenoid
|
