TORQUE CONVERTER OUTLINE [GF4AX-EL]
BUE051719100N01

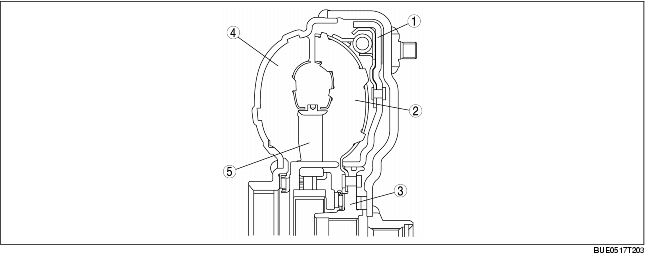

• A three-element, one-stage, two-phase torque converter with a TCC mechanism has been adopted.
• The vanes inside the torque converter are shaped to match engine output characteristics and thereby optimize that output to ensure sufficient transmission efficiency and torque conversion ratio.
|
1
|
TCC piston
|
|
2
|
Turbine runner
|
|
3
|
Turbine hub
|
|
4
|
Pump impeller
|
|
5
|
Stator
|
