OIL PUMP OPERATION [GF4AX-EL]
BUE051719220N03

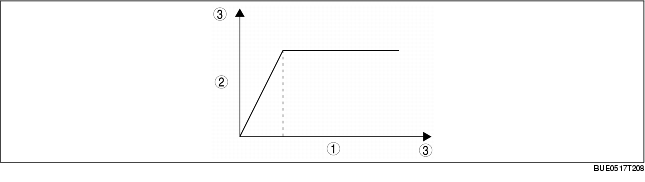

• The variable displacement trochoid gear oil pump maintains oil discharge amount at a constant level when engine speed rises above a certain speed allowing no more oil than is necessary to be pumped. Due to this, torque loss is prevented and power efficiency is improved.
|
1
|
Engine speed
|
|
2
|
Oil discharge amount
|
|
3
|
Increases
|
