COOLING SYSTEM CONSTRUCTION [LA4AX-EL (CD4E)]

BUE051719900N02

• All vehicles are equipped with an oil cooler integrated with the radiator which cannot be repaired separately.

• The integrated oil cooler transfers heat from the ATF to the engine coolant.

• The auxiliary oil cooler transfers heat from the ATF to the outside air.

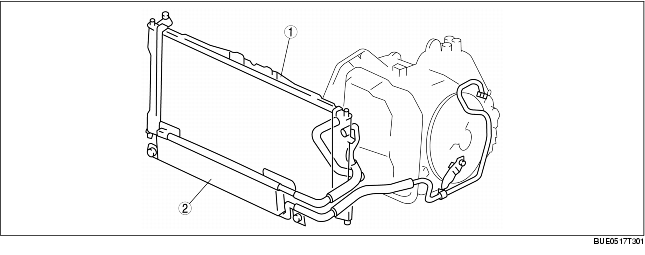

1	Radiator (oil cooler integrated)
2	Auxiliary oil cooler
