ON/OFF SOLENOID VALVE OPERATION [GF4AX-EL]


BUE051721101N14

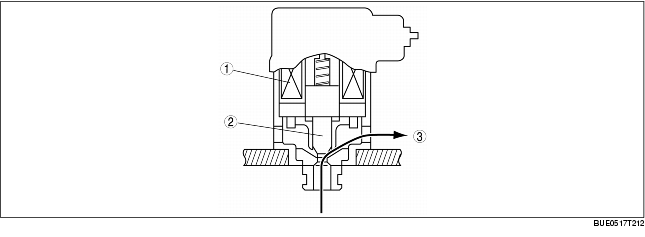

On

The coil is energized, drawing the plunger upward to open the drain port and release hydraulic pressure.

1
Coil
2
Plunger
3
Released

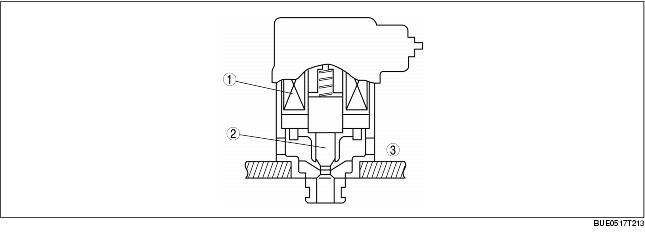

Off

The plunger moves down due to spring force, closing the drain port to maintain hydraulic pressure.

1
Coil
2
Plunger
3
Pressure maintained

ATF Flow

Solenoid Valve

Released
On
Pressure maintained
Off
