KEY INTERLOCK SYSTEM STRUCTURE
BUE051809000N02

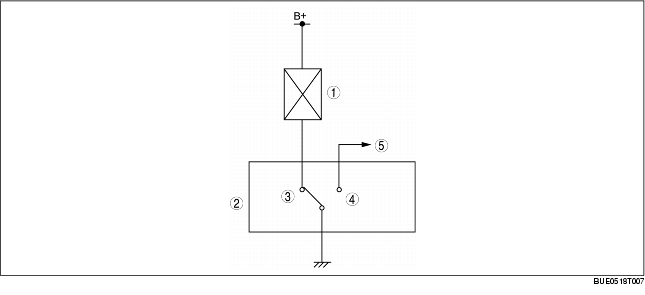

Structure
• The key interlock system consists of the P position switch (built-in selector lever component), key interlock solenoid, and steering lock.
|
1
|
Key interlock solenoid
|
|
2
|
P position switch
|
|
3
|
Except P position
|
|
4
|
P position
|
|
5
|
To instrument cluster
|
Operation

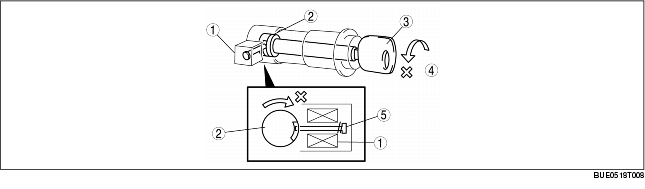

Position other than Park (key interlock operates)
-
• The key interlock solenoid is energized when the selector lever is any position other than the P position. When the key interlock solenoid is energized, the solenoid slider prevents the ignition switch rotor from rotating. Due to this, the key cannot be turned to the LOCK position.
|
1
|
Key interlock solenoid
|
|
2
|
Rotor
|
|
3
|
Key
|
|
4
|
Cannot be turned from ACC to LOCK
|
|
5
|
Slider
|

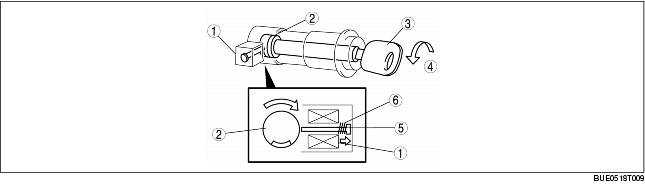

Park position (key interlock does not operate)
-
• The key interlock solenoid is not energized when the selector lever is in the P position. The key interlock solenoid slider is pulled by the return spring, releasing the rotor in the ignition switch. Due to this, the key can be turned to the LOCK position.
|
1
|
Key interlock solenoid
|
|
2
|
Rotor
|
|
3
|
Key
|
|
4
|
Can be turned from ACC to LOCK
|
|
5
|
Slider
|
|
6
|
Return spring
|
