HEATER UNIT CONSTRUCTION

BUE071161130N01

• Consists of the following parts:

- Heater core

- Air mix door

- Mode door

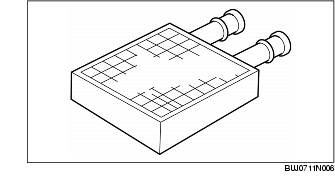

Heater Core Construction

• The heater core consists of fins and tubes arranged to extract heat from the engine coolant and transfer the heat to air passing through the heater core housing.
