AUDIO CONTROL SWITCH CONSTRUCTION/OPERATION
BUE092000148N02
Construction

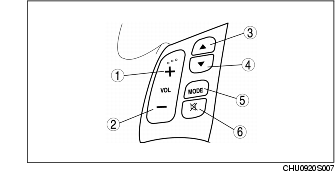

• The audio control switch is located on the steering wheel.
1
Audio control switch
Operation
No.
Button (component)
Function
1
Volume button (+)
Volume up
2
Volume button (-)
Volume down
3
AUTO scan button
Selects radio stations
AUTO track button
Changes tracks
4
Preset button
Selects the preset button
5
Mode button
Selects the audio mode
(AM→FM1→FM2→Cassette tape/MD→CD/CD changer)
6
Mute button
Mute
