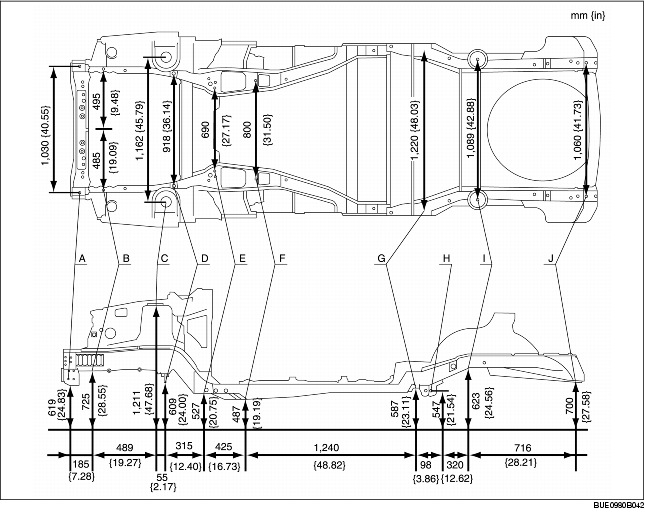

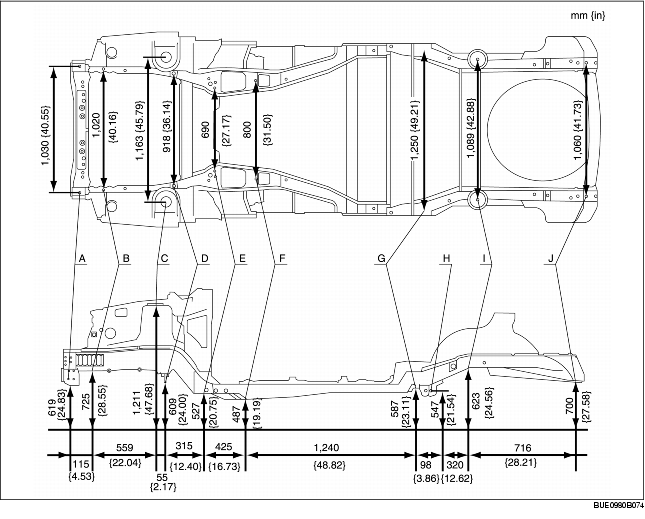

Point symbol
|
Designation
|
Hole diameter or bolt size or nut size mm {in}
|
|
A
|
Crossmember No,1 standard hole
|
ø16 {0.62}
|
|
B
|
Front side frame standard hole
|
ø16 {0.62}
|
|
C
|
Front suspension mounting block surface hole center
|
ø80 {3.14}
|
|
D
|
Front suspension mounting bolt
|
M14 {0.55}
|
|
E
|
Front frame rear standard hole
|
ø16 {0.62}
|
|
F
|
Front B frame standard hole
|
ø16 {0.62}
|
|
G
|
Rear side frame standard hole
|
ø16 {0.62}
|
|
H
|
Link bracket
|
17 × 29.5
|
|
{0.66 × 1.16}
|
|
I
|
Rear suspension housing
|
ø12 {0.47}
|
|
J
|
Rear side frame standard hole
|
16 × 20
|
|
{0.62 × 0.98}
|
