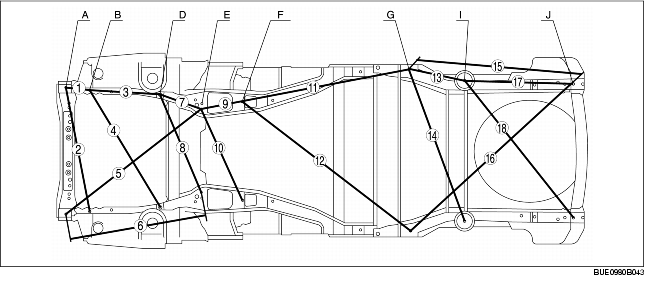

UNDERBODY STRAIGHT-LINE DIMENSIONS
CUE098053010B02
|

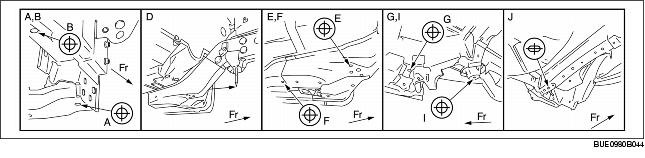

Measured location
|
Dimensions mm {in}
|
|
1
|
R.H.D. models
|
RH:214 {8.42},
|
|
LH:215 {8.46}
|
|
L.H.D. models
|
156 {6.14}
|
|
2
|
R.H.D. models
|
RH:1,023 {40.27},
|
|
LH:1,032 {40.62}
|
|
L.H.D. models
|
1,037 {40.83}
|
|
3
|
R.H.D. models
|
558 {21.96}
|
|
L.H.D. models
|
628 {24.72}
|
|
4
|
R.H.D. models
|
RH:1,105 {43.50},
|
|
LH:1,096 {43.14}
|
|
L.H.D. models
|
1,154 {45.43}
|
|
5
|
1,357 {53.42}
|
|
6
|
1,063 {41.85}
|
|
7
|
345 {13.58}
|
|
8
|
867 {34.15}
|
|
9
|
430 {16.94}
|
|
10
|
859 {33.82}
|
|
11
|
R.H.D. models
|
1,262 {49.68}
|
|
L.H.D. models
|
1,264 {49.77}
|
|
12
|
R.H.D. models
|
1,602 {63.07}
|
|
L.H.D. models
|
1,612 {63.46}
|
|
13
|
R.H.D. models
|
425 {16.73}
|
|
L.H.D. models
|
428 {16.85}
|
|
14
|
R.H.D. models
|
1,229 {48.38}
|
|
L.H.D. models
|
1,243 {48.94}
|
|
15
|
R.H.D. models
|
1,144 {45.03}
|
|
L.H.D. models
|
1,145 {45.08}
|
|
16
|
R.H.D. models
|
1,613 {63.50}
|
|
L.H.D. models
|
1,623 {63.91}
|
|
17
|
721 {28.39}
|
|
18
|
1,294 {50.94}
|
