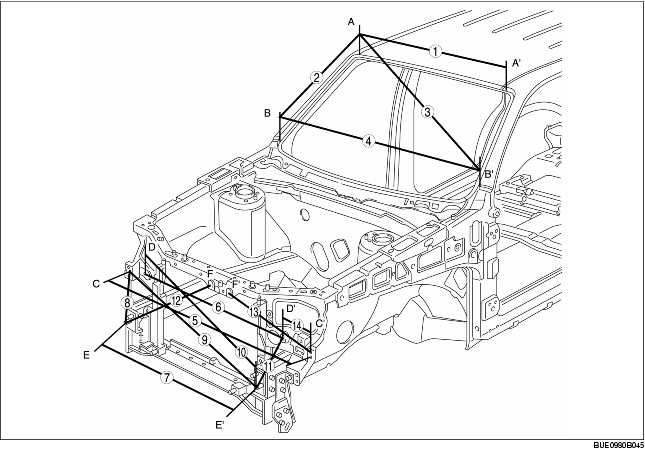

FRONT BODY STRAIGHT-LINE DIMENSIONS (1)
CUE098053020B01
|
Measured location
|
Dimensions mm {in}
|
|
1
|
1,114 {43.87}
|
|
2
|
R.H.D. models
|
647 {25.47}
|
|
L.H.D. models
|
644 {25.36}
|
|
3
|
R.H.D. models
|
1,433 {56.41}
|
|
L.H.D. models
|
1,432 {56.38}
|
|
4
|
1,468 {57.79}
|
|
5
|
1,544 {60.79}
|
|
6
|
1,080 {42.52}
|
|
7
|
1,082 {42.60}
|
|
8
|
R.H.D. models
|
324 {12.76}
|
|
L.H.D. models
|
326 {12.84}
|
|
9
|
1,333 {52.48}
|
|
10
|
1,106 {43.53}
|
|
11
|
R.H.D. models
|
230 {9.05}
|
|
L.H.D. models
|
232 {9.15}
|
|
12
|
R.H.D. models
|
598 {23.54}
|
|
L.H.D. models
|
600 {23.62}
|
|
13
|
730 {28.76}
|
|
14
|
235 {9.25}
|
