RADIATOR SHROUD PANEL COMPONENT REMOVAL

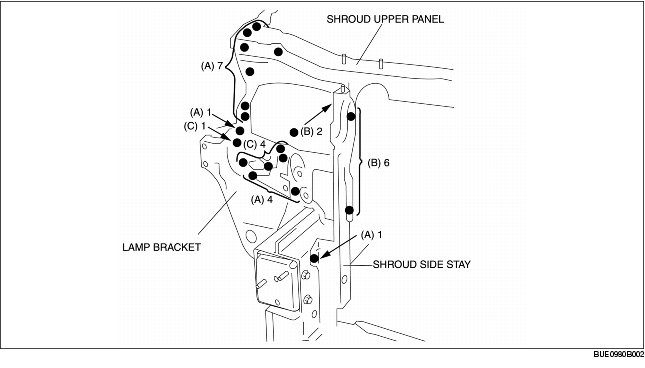

1. Drill the 13 weld locations indicated by (A), and remove the radiator shroud panel component.

Note

• When removing the shroud panel, lamp bracket, and the shroud side stay separately, drill the 8 locations indicated by (B) and the 5 weld locations (C).
