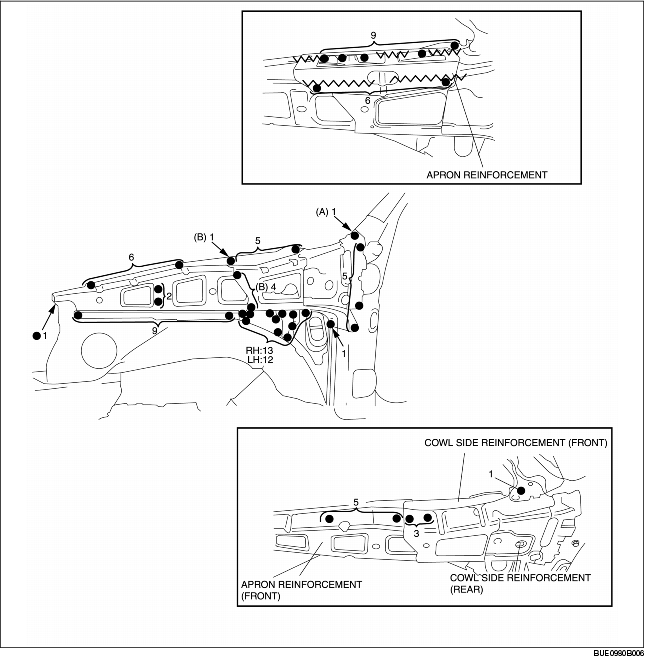

APRON REINFORCEMENT AND COWL SIDE REINFORCEMENT REMOVAL

1. Remove the apron reinforcement.

2. Remove the cowl side reinforcement (front) and cowl side reinforcement (rear).

Caution

• Be careful not to damage the windshield when drilling the 2 locations indicated by (A).

3. Remove the apron reinforcement (front).

Note

• Drilling of the 5 locations indicated by (B) is not necessary when replacing the apron reinforcement (front) and the cowl side reinforcement at the same time.
